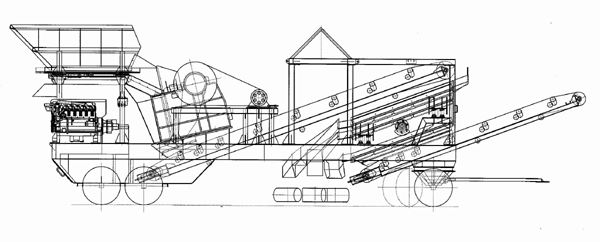

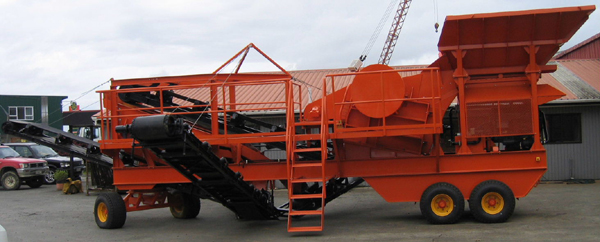

MOBILE JAW CRUSHER  PLANT

Capacity¡ª40 T/ Hr.


TECHNICAL DETAILS

    JAW CRUSHER--  400 X 600

  • Feed opening      400 x 600mm
  • Discharge width   40~100  mm
  • Feed material max.   340 mm
  • Weight            6500 kg.
  • Shaft speed     275 RPM
  • Capacity          16 to 64 T/hr. (10 ~40) cubic m/hr.

    Jaw crusher belt driven by hydraulic motor of reputed quality.
    Speed can be varied by controlling engine speed.

FEEDER HOPPER

    Driven by hydraulic ram- can be controlled to suit material feeding.
    Main feeder  conveyor ¨C600mm wide belt

Pre ¨CCrusher Grizzly Screen

    Before feeding to the  crusher pieces  not requiring crushing are by-passed, thus increasing  the overall capacity.

CONVEYORS

    Conveyor  Main ¡ª 600 mm wide is driven by hydraulic motor

    Conveyor  Screen ¡ª 450mm wide-driven by hydraulic motors

POWERED BY

    ¡°DEUTZ¡± diesel engine

    Engine housed in fully protected covered housing with air-filters and silencer.

DIMENSIONS

    Height for transport within 4.2meters

    Width for transport, less than 2.4meters.

With following  features:

  • Permitting quick set up for easy mobility within standard transport authority requirements [width less than 2.4m and height less than 4.2m]

  • Heavy duty axles and turn table  provide easy handling on road.

  • Large capacity tanks for diesel and hydraulic oil for long continuous running

  • All bearings are amply rated for long life and sealed for minimum maintenance in the field. The entire system is practically maintenance free with easy access points for topping oil, changing/cleaning filters, and greasing.

  • Walkway with fencing for safe working  on the machine, also provided with Emergency stop buttons  besides the control panel which are easily accessible.

  • All parts so located that they can be easily serviced, e.g. special provision for easy draining of engine oil etc.

  • All rotating members fully fenced  by guards.
