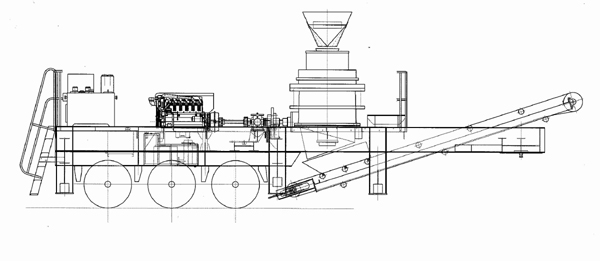

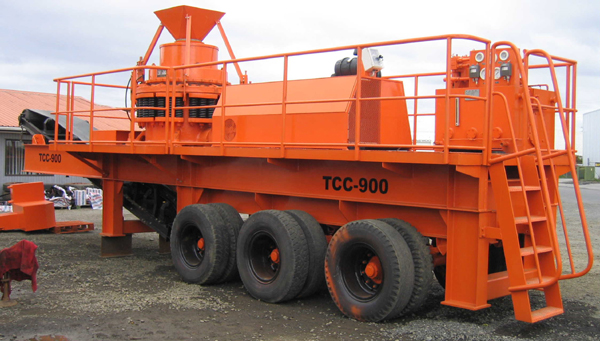

The Mobile Cone 900

crushing plant is a diesel powered directly driven cone crusher through a fluid coupling . It can be used in conjunction with a primary jaw crushing and screening plant on site as well as independently. It is provided with Mechanical Seal With Compressed Air System consisting of good quality mechanical seals which prevent ingress of dust particles into the main bowl bearings and at the same time a steady flow of compressed air serves to blow away the particles from the bearing area. This has the advantage of not having problems created by water entering the lubricating system in water seal arrangements and resulting in bearing and drive failure.


SPECIFICATIONS OF MOBILE CONE CRUSHER 900 STANDARD HEAD

CONE CRUSHER 900 STANDARD HEAD

DIAMETER OF CRUSHING HEAD 900mm

WIDTH OF CHARGING SLIT 135mm

MAX. FEED SIZE 115mm

ADJUSTABLE RANGE OF DISCHARGE OPENING 15~50mm

CRUSHING CAPACITY 18~105 T/Hr.

POWER REQUIRED 55kW

SPEED OF ECCENTRIC SHAFT 333 RPM

WEIGHT 11.2T

OVER DIM. 3050X1640X2350mm

ENGINE DEUTZ BF 6L 913 C
No. of cylinders 6 In Line
Bore x Stroke 102 dia. x 125
Displacement 6.12L
Compression ratio 17
Max. rated speed 2500 RPM
Power rating 125kW @ 2300 RPM
Turbo Charged ¨CInter Cooled

DRIVE
ROTOFLUID 55K-LRV65 Fluid coupling 160kW
--2xlrv flexible output
Reduction Box GSM RPI / 160/ A /2S/ ECE
Parallel Shaft 2.451: 1 Ratio
Rated at 256kW

LUBRICATION SYSTEM

Oil Tank 630L
Pump Drive Hydraulic
