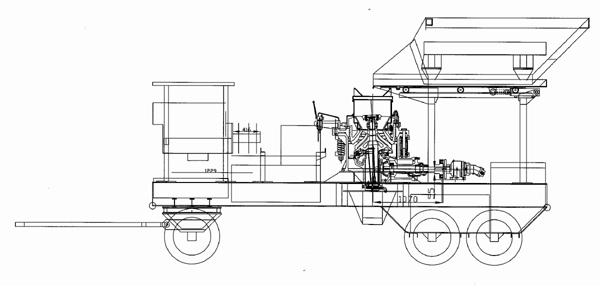

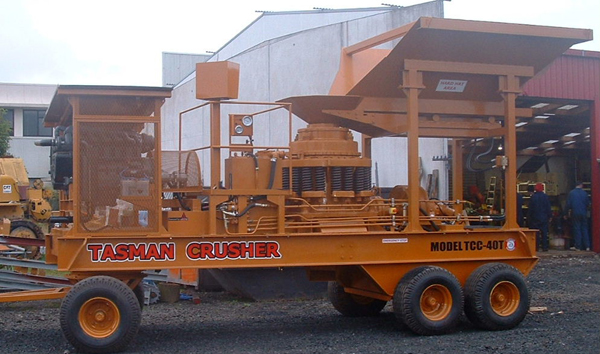

The Mobile Cone 600
crushing plant is a diesel
powered hydraulic driven plant comprising a hopper with plate feeder
and hydraulic motor driven cone crusher. It can be used in
conjunction with a primary jaw crushing and screening plant on site
as well as independently.
TECHNICAL DATA
The mobile unit is fitted with Tasman Cone crusher CC600 Model
Standard Head for Product Size 12—25 and Output 40T/hr or
Short Head for Product Size 3—13 and Output 12-23T/hr
POWERED BY DEUTZ BF61913 DIESEL ENGINE
|
Number of cylinders |
6 |
|
Bore / Stroke |
102mm
/ 125mm |
|
Displacement |
6.12
L |
|
Compression ratio |
18 |
|
Maximum rated speed |
2500
RPM |
|
Power rating |
|
| Highly
intermittent operation |
118 kW @ 2500 RPM |
| Maximum
torque |
550 Nm @ 1600 RPM |
HYDRAULIC SYSTEM is used for the reciprocating
plate feeder and hydraulic motor to drive the cone crusher.
|
Main drive coupling |
CF-11-30 |
|
Main pump |
3.5PB75/2PB26/2PB13.8 |
|
Pilot operating relief valves |
Crusher—HCV 33TP16 RVGA LCN |
| |
Feeder –HCV 332TP12 RVEA LAN |
| |
Conveyor—HCV 332TP12 RVEA LAN |
|
Feeder plate reciprocating valve |
CETOP.5 |
|
Feeder plate ram |
Super S 4”x 2 ½”x 8” |
|
Conveyor motor |
ARC 400 NC32 |
|
Crusher motor |
HIC 55S LM 2R |
|
Crusher gear box |
PD 1020/MR1/3.08/00 |
|
Suction strainer |
Daewoo 290-5 |
|
Check valve |
1” 0.5 Bar |
|
Return filter |
RTF 600/10 |
|
Hydraulic tank capacity |
950 L |
|
Hydraulic oil type |
HYD. 68 |
CRUSHER LUBRICATION SYSTEM
consists of lubrication pumps driven by hydraulic motor with
filtering system to lubricate the gears and the main bowl bearing of
the cone crusher. It also serves to dissipate the heat generated
during the process.
| Hydraulic motor |
2MRB11.3 |
| Lub pump |
2PB22.5/d |
| Lub pressure |
0.08 ~ 0.25 Bar |
| Lub pump flow |
32 L/Min. |
| Suction filter |
Size 90 60 m Washable type
SOE 10/60 |
| Suction screen |
Metal 120 m |
| Oil pressure light |
At 0.1 Bar |
| Oil temperature light |
At 60°C ~ 70°C |
| Relief valve setting |
3 Bar |
| Lub flow to crusher |
Manual via ball valve |
| Lub oil type |
Hyd. 68 |
| Lub oil capacity |
1700 L |
| Lub filter |
|
MECHANICAL SEAL WITH
COMPRESSED AIR SYSTEM consists of good quality mechanical seals
which prevent ingress of dust particles into the main bowl bearings
and at the same time a steady flow of compressed air serves to blow
away the particles from the bearing area. This has the advantage of
not having problems created by water entering the lubricating system
in water seal arrangements and resulting in bearing and drive
failure.
| Motor |
2MRB11.3 |
| Pump drive |
D90/GR2 |
| Air Compressor |
Ingersoll Rand |
| Air Compressor model |
SS-3 |
|
